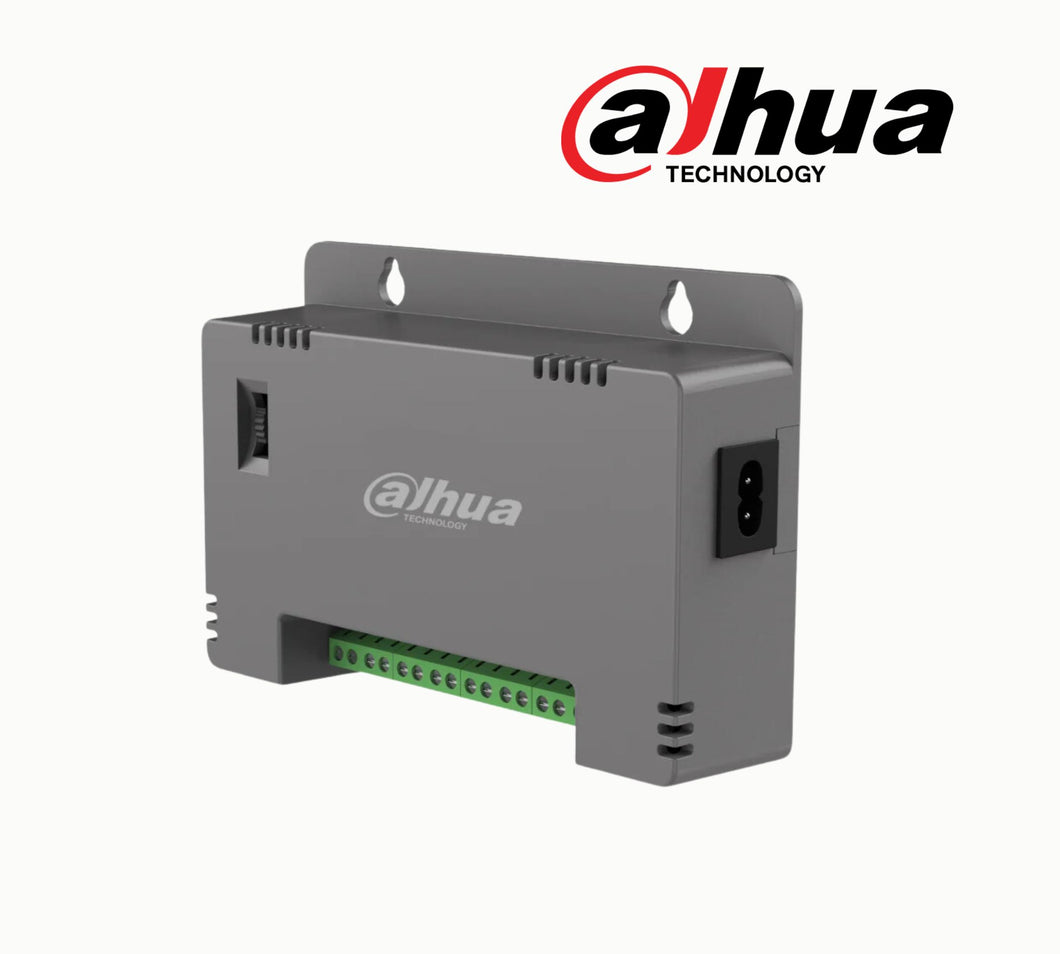

Dahua CCTV Power Supply 12VDC 5A 8 Way DH-PFM344D-8CH
System Overview
The Dahua DH-PFM344D-8CH is an 8-channel output switching power supply designed for CCTV security monitoring applications. It features adjustable output voltage in three levels, wall-mounted installation, and various protection functions including overcurrent, over-voltage, and short-circuit protection. The power supply also has V-0 level fire protection rating.
Technical Specifications
Model: DH-PFM344D-8CH
Electrical Specification:
Input Voltage Range: 185~240Vac
Efficiency:* ≥87.00%
Output Voltage:
Normal: DC12V
Long: DC13.5V
Ex-Long: DC15V
Rated Output Current:
Normal: 5A
Long: 4.5A
Ex-Long: 2A
Output Power:
Each channel:12W, total: 60W
No Load Power Consumption:* ≤0.21W
Protection/Environmental
Surge Protected:
Line to ground: ±4000V
Line to line: ±2000V
ESD:
Contact discharge: ±6000V
Air discharge: ±8000V
Protective Function:
Overcurrent protection, short circuit protection, overvoltage protection
Working Temperature:
0°C to +40°C
