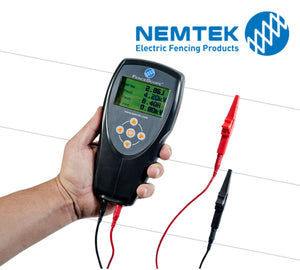

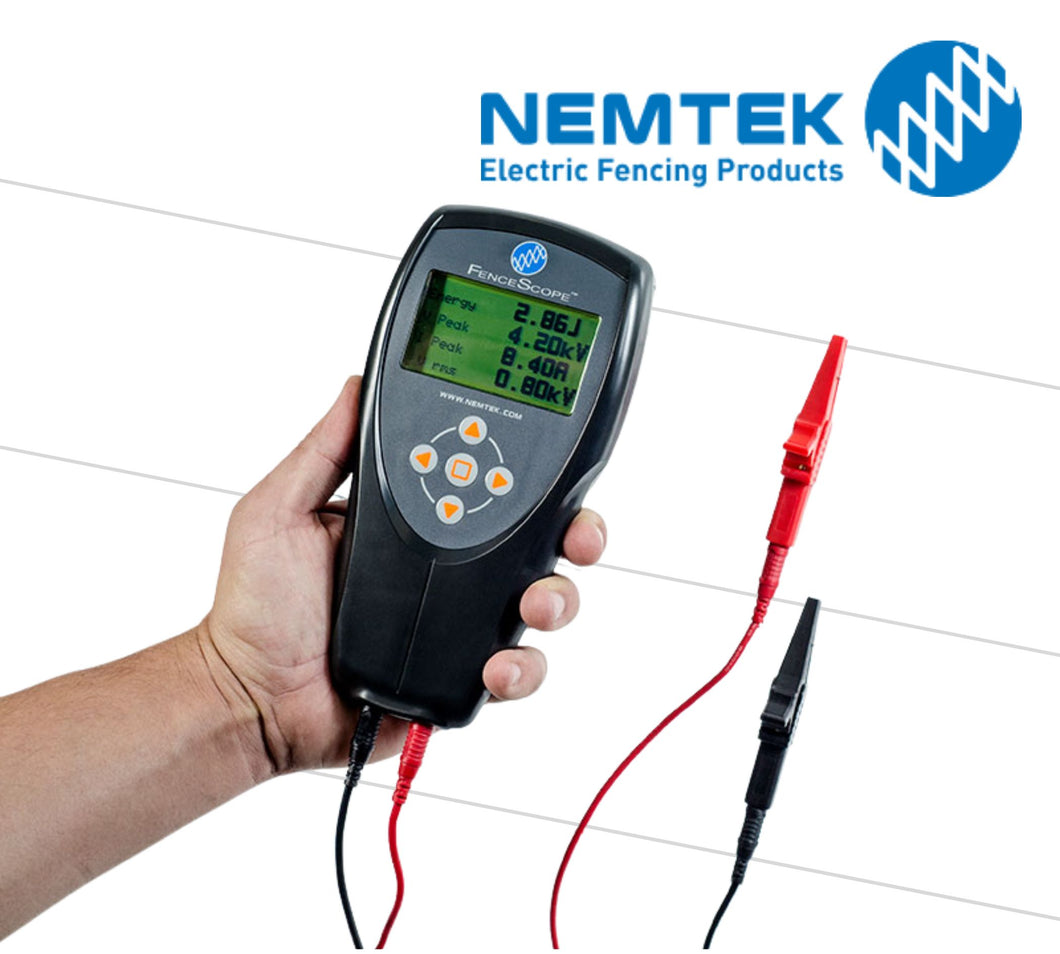

There are four operation modes to select from:
Fence Probe mode – quickly indicates the direction of a fence fault, showing the voltage and current
Fence energy mode – accurately measures the output energy along the fence. This mode can be used to test the size of the shock the intruder will receive at any point along the fence by simulating the intruder. This helps to ensure that the voltage and the energy is sufficient along the entire fence to deliver an appropriate shock to the intruder.
Fence scope mode – this can record and display wave forms of the electric fence pulse. Distortions in the wave form (wave shape) generally indicate that there are fence faults.
Fence noise mode – this shows the amount of electromagnetic interference generated by the fence or energizer. This feature assists in finding cracked or broken insulators, sparks and shorts along the fence.
*Pouch sold separately
Specifications:
Display
Liquid-Crystal Display (LCD)
Landscape Orientation
1bit/pix colour depth
128 x 64 Pixels
Operating temperature
-10°C to 50°C
Battery Type
9V alkaline, 6LR6 / PP3, 50 hours typical battery life (without using backlight)
Size
102 mm W x 50 mm H x 192 mm L
Weight
251g (without battery)
298g (with battery)
